Discontinued

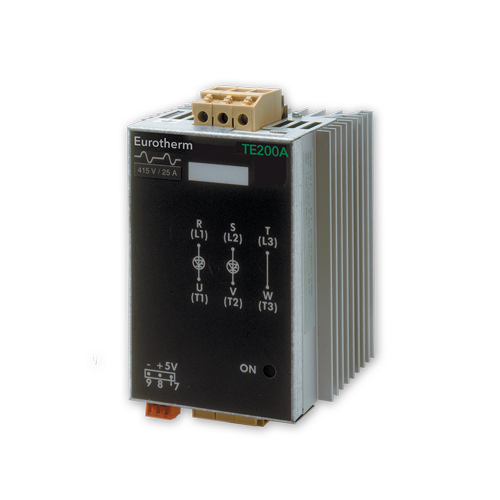

TE200A Power Controller

Category: Discontinued Eurotherm Products

Request Info / Quote

Description
Specification
Downloads

Description

TE200A Two leg, three phase, burst firing Power Controller

Ergonomic design
Analog input configured as voltage, current or potentiometer
Burst firing or single cycle firing modes
Input current 4-20mA
Input voltage 0-5Vdc, 0-10Vdc
Nominal current per phase 16-63A at 45°C

The TE200 range is designed for general purpose three phase applications which use three wire resistive or short wave infrared (SWIR) loads. Two of the three phases are switched by the TE200, the third phase being directly connected.

Specification

Digital Comms	None
Maximum Current (Amps)	63A
Maximum Voltage (Volts)	500V
Controlled Phases	2
PLF and/or PLU	No
Current Limit	No
Diagnostics	No
Alarm Types	No
Input Analogue	Yes
Input Logic	Yes
Firing Mode Burst Firing	Yes
Firing Mode Phase Angle	No
Heater Type Constant Resistance	Yes
Heater Type SWIR	Yes
Heater Type Variable Resistance	No
Heater Type Inductive/Transformer Coupled	No
